FEATURES
EASY TO USE

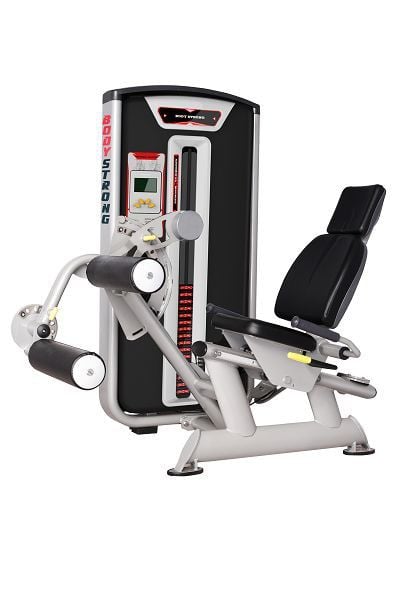

Innovative designs on the Leg Extension make positioning the tibia pad intuitive, virtually effortless, and results in easily accessible and easily adjustable machines.
SAVES ON THE SHINS
Offset input arm allows for the pad to adjust without affecting the starting angle of the knee. In combination with proper pivot location, this allows the use of a flat pad for reduced shin pressure.
OPTIONAL ADJUSTABLE START
BS line offers an Adjustable Start System. The fixed Start Position is a standard and features a typical Start Range. Because each individual has a different range of motion, the adjustable start makes BS user-friendly to a wider audience.
Specifications
Pulley: Cast iron, ø106x20mm, with sealed bearing 6202RS
Cable: Steel cable ø3.5 jacketed with PVC ø5.5mm outside diameter
Powder Coating: 2 times (silver/black/dark grey + varnish)
Tube 1: Flat Elliptical tube, 50*120mm T.: 3mm
Tube 2: Oblong tube, 40x80mm T.: 2.5mm
Tube 3: Round tube, ø50mm T.: 3.0mm
Weight stack: made of STEEL
Weight Stack Cover: overall enclosed, one time molding PVC
Stuffing: PU foam with synthetic leather
Counter Function: recording lasting time, exercise times and the calories the users consume
STACK WEIGHT | 80kg |
G.W. | 317kg |
N.W | 272kg |
DIMENSIONES | 1260x1180x1600mm |
PACKAGE SIZE | 1620*1100*800mm |
VOLUME CBM | 1.43 |
