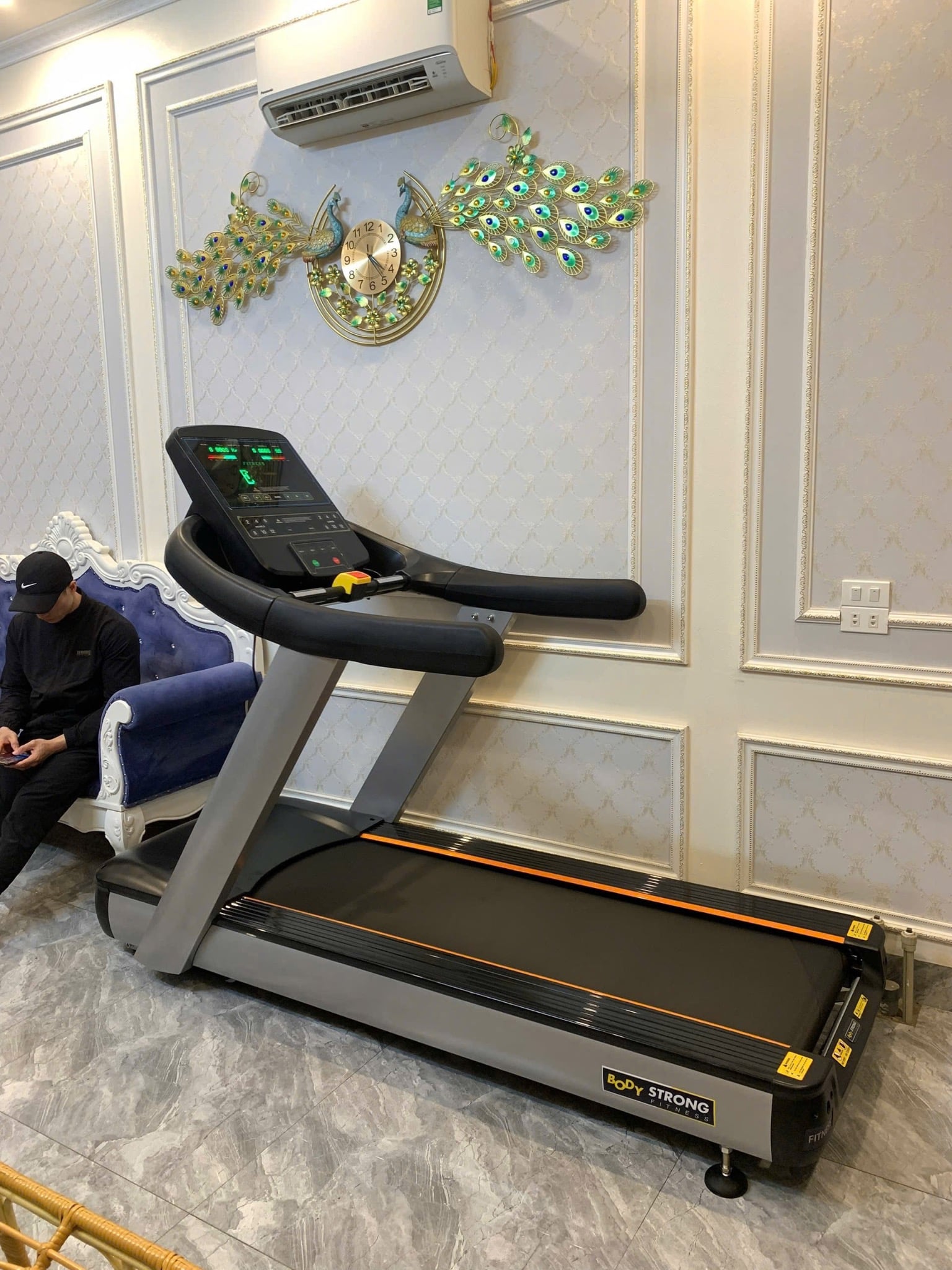

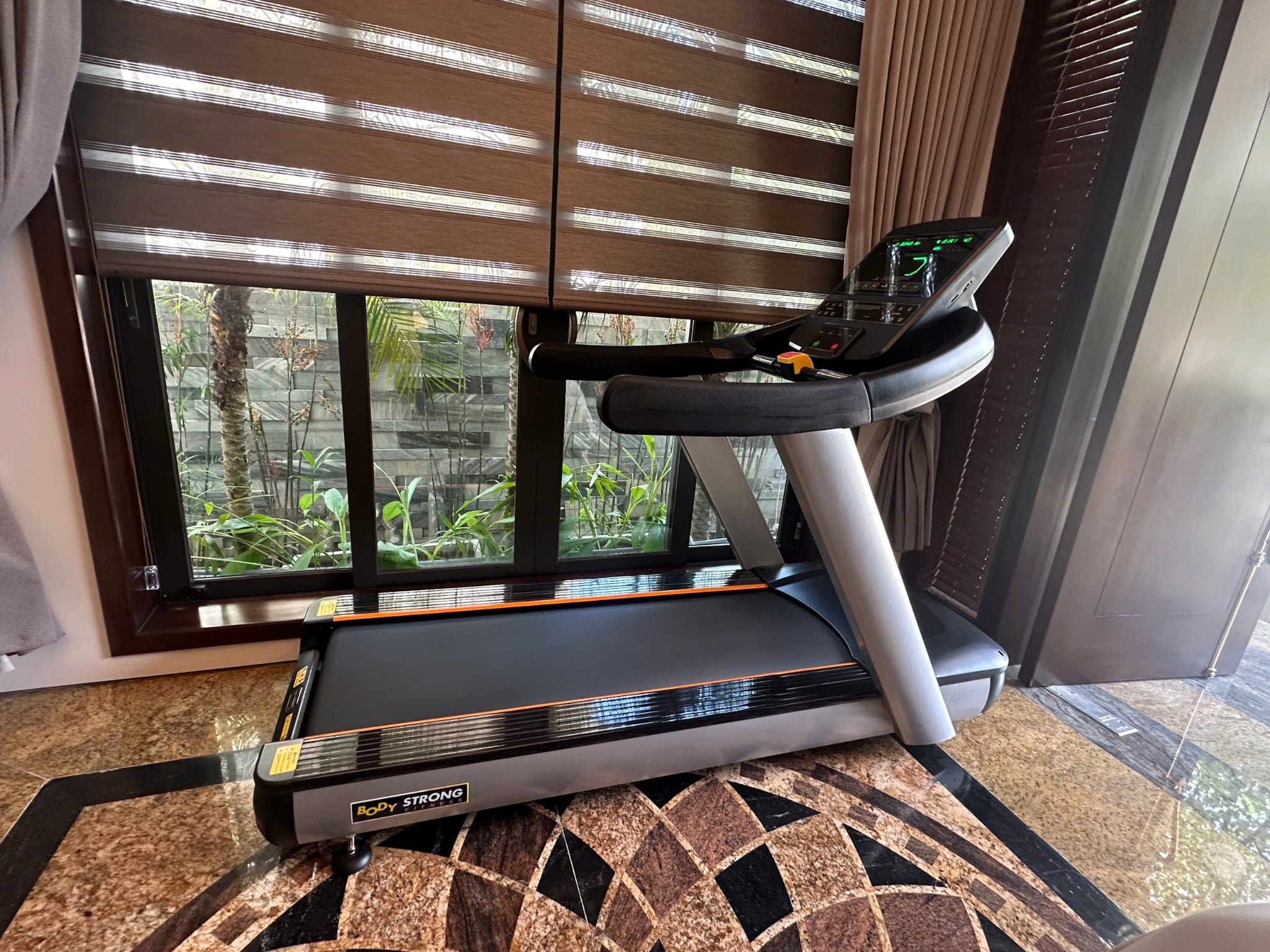

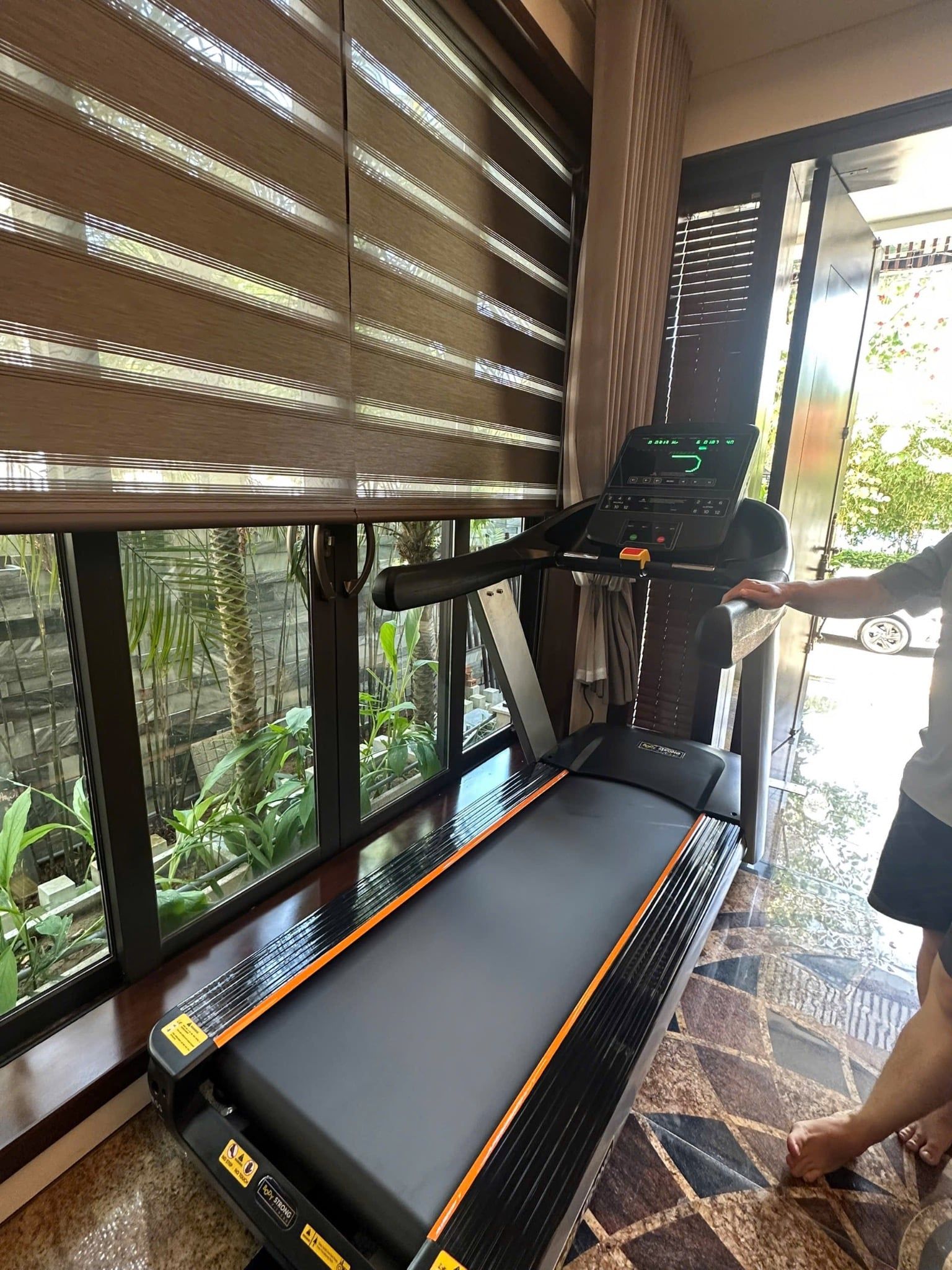

Based on international advanced concept ,the All-New design, longer deck size provides the user
with much more running space.
Main frame: steel welded, thickness: 3mm/5mm.
Adopt high resolution1920x1080, 18.5”quad-core super full view screen, Android system, support
WIFI connectivity.
Equip with humanized program, different configuration for choices of entertainment for users to
choose, ensure users enjoy exercising.
LED dynamic digital screen for more choices for users. multiple Windows display all function
parameter.
Adopt German “siegling” transmission system, strengthen thickness of running board, quadruple
superposition shock absorption technology, effectively reduce the damage to the knees and joint,
self-lubricating, ensure the treadmill stable and durable
Specifications
Dimension（L）2280*940*1610mm
Product Weight N.W.: 200KG G.W.: 290KG
Max User Weight:175KG/386LBS
Belt Size: Thickness: 3.1/4.0mm
Perimeter: 3514mm Width: 550mm
Running Area 1500（L）*530（W）mm
Speed Range 1-20km/h
Elevation range 0-20%
Roller Diameter85mm Length: 590mm
Voltage & Frequency
220V+10% 50/60HZ
Power Continuous: 3.0HP
Max Power: 7.0HP
Motor Ultra-quiet AC Motor
Inverter Mitsubishi(Imported) / China
Central Console Type:Seven Windowns Displa
Features of Screen: LED screen
Electronic Reading:
Program set up:target distance/time/calorie
countdown,speed/slope direct selection,heart rate
Language of Central Console: Chinese/English
Touch Key Board:Program,Speed,Incline
